BIApps Installation : OBIA INSTALLATION


In Our previous page we implemented OBIA RCU. Please go to ...Previous Page

Now we will see OBIA INSTALLATION

Go to CMD  --> right click Run as Administrator

set the Java path for the installation

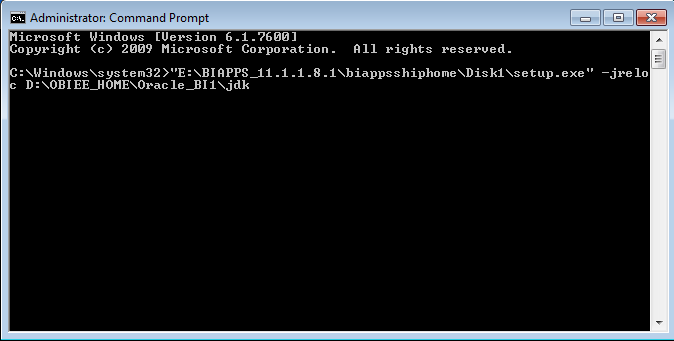

"E:\BIAPPS_11.1.1.8.1\biappsshiphome\Disk1\setup.exe" -jreloc D:\OBIEE_HOME\Oracle_BI1\jdk



Click on NEXT

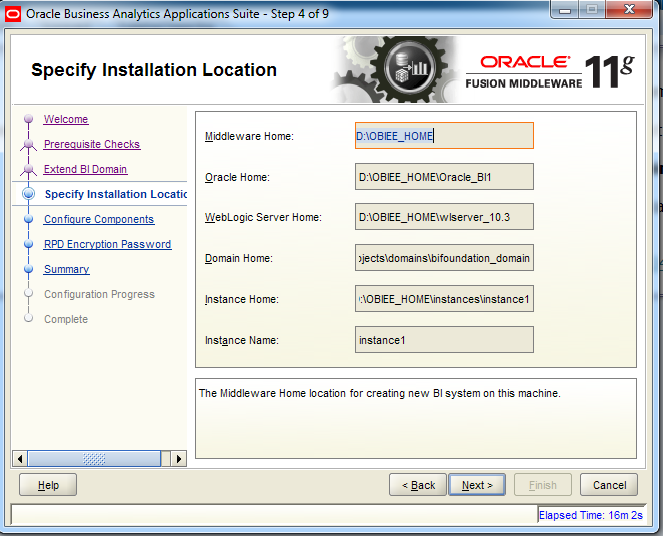

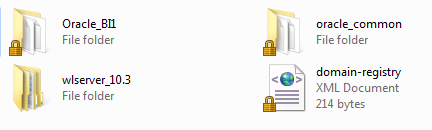

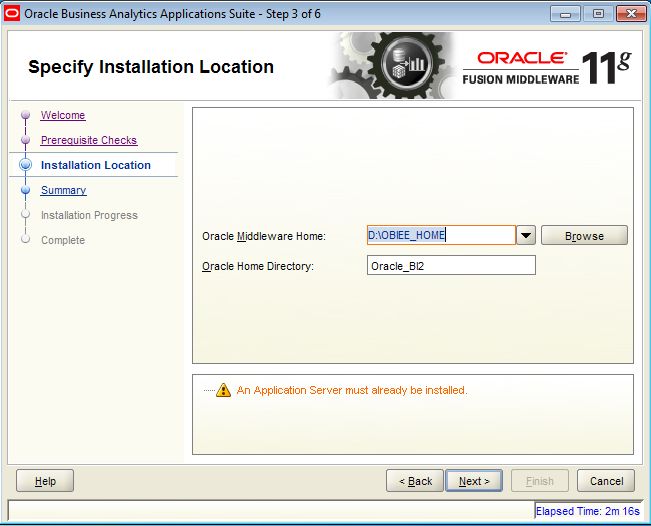

Provide below paths as for your OBIEE installation Click on NEXT
NOTE:
Oracle Home Directory much be changed according to your OBIEE installation
so change it in to OracleBI1

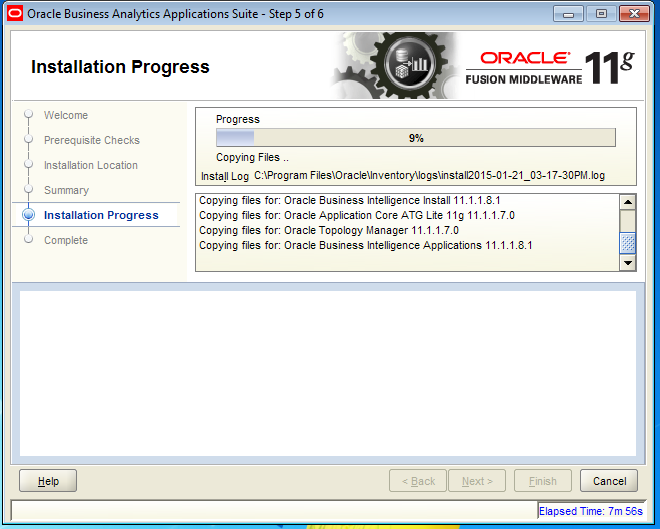

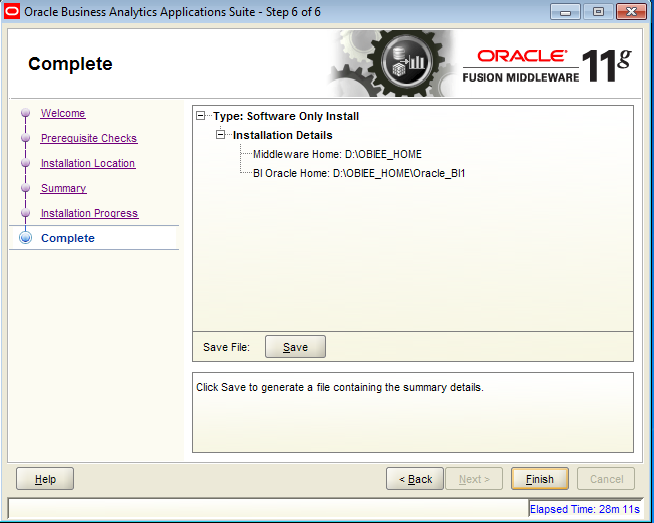

Click on INSTALL
.. to be continued Navigate to OBIA PATCH UPDATES

Tuesday, September 29, 2015

BIApps Installation : OBIA PATCH UPDATES


In Our previous page we implemented OBIA INSTALLATION. Please go to ...Previous Page
Now we will see PATCH UPDATES

Download all the patch files from oracle support site


uzip all the files in a folder structure as given below

Create a New Folder in that add all the patch files



Make sure all servers like weblogic ,Node manager ,opmnctl ..etc are stopped

if you are not sure how to stop all restart your PC

also go to services.msc and stop all of them

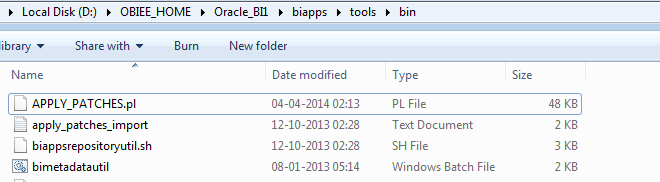

Navigate to path D:\OBIEE_HOME\Oracle_BI1\biapps\tools\bin open apply_patches_import file

Modify all parameters as shown below

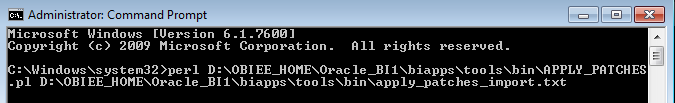

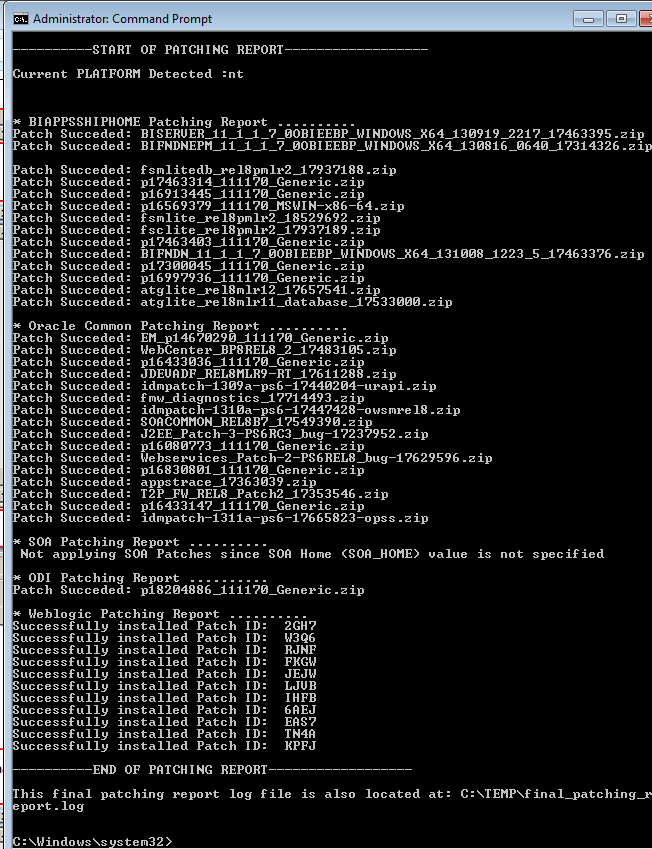

Open command prompt window execute below perl script
in cmd
perl D:\OBIEE_HOME\Oracle_BI1\biapps\tools\bin\APPLY_PATCHES.pl D:\OBIEE_HOME\Oracle_BI1\biapps\tools\bin\apply_patches_import.txt

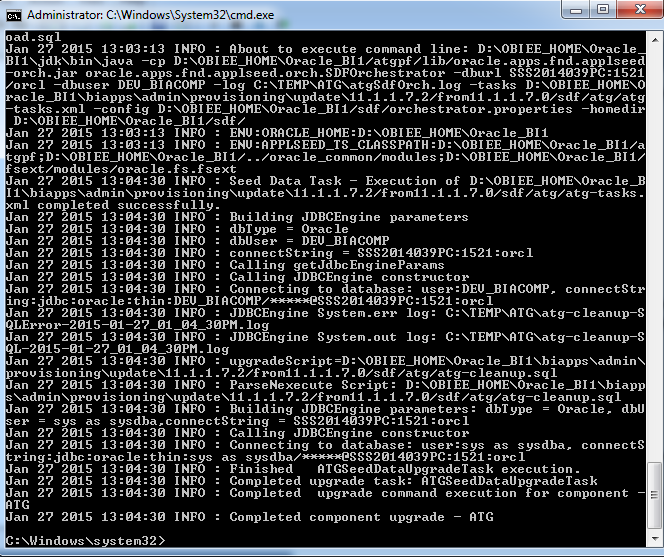

UPDATE ATGLITE PATCH by running below command in command prompt
CMD --> Run as Administrator

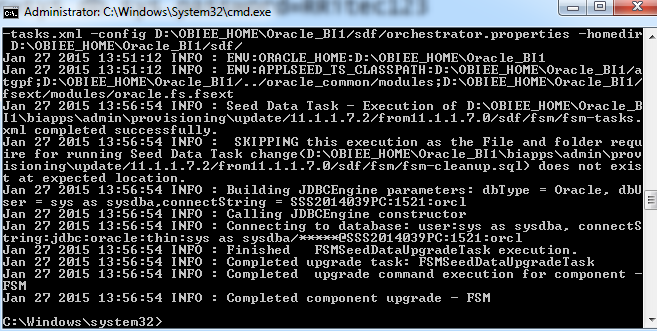

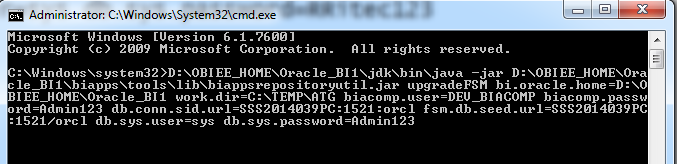

UPDATE FSM LITE by running below command in command prompt


... to be continued Navigate to OBIA Configuration

Monday, September 28, 2015

BIAPPS Installation : OBIA Configuration

In Our previous page we implemented OBIA PATCH UPDATES. Please go to ...Previous Page
    Now we will see Configuration

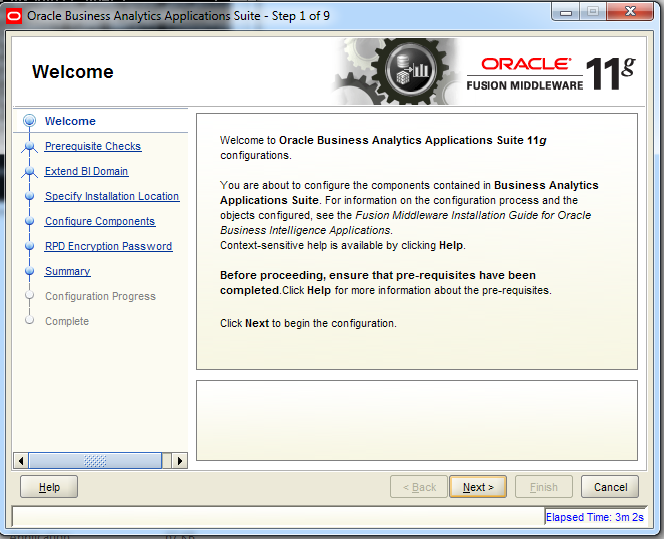

    1. Go to path C:\OBIEE_HOME\Oracle_BI1\bin Double click on configapps

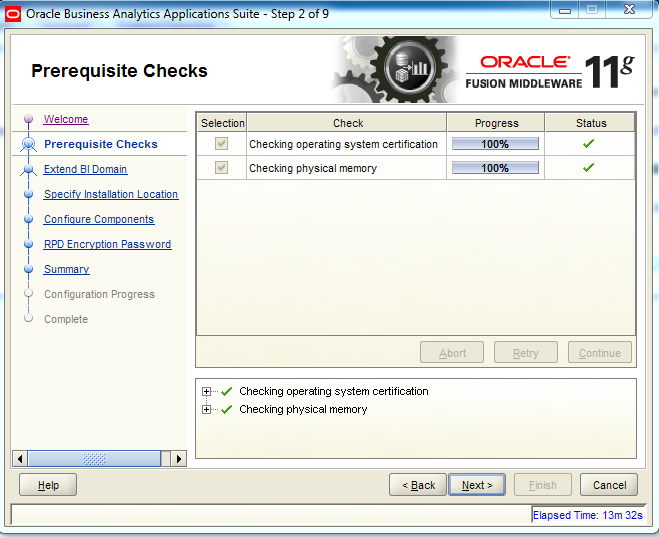

    2. Click on NEXT


    3.Click on NEXT

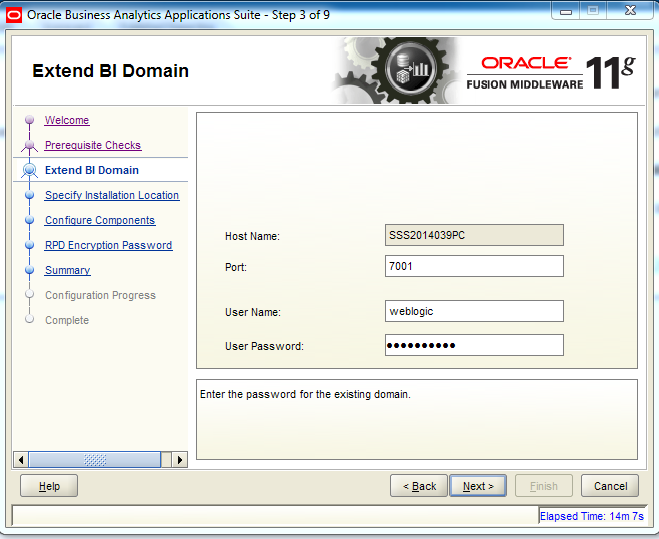

    4.Provide password as Admin12$$# Click on NEXT


    5.Observe all parameters you can not modify any parameters click on NEXT

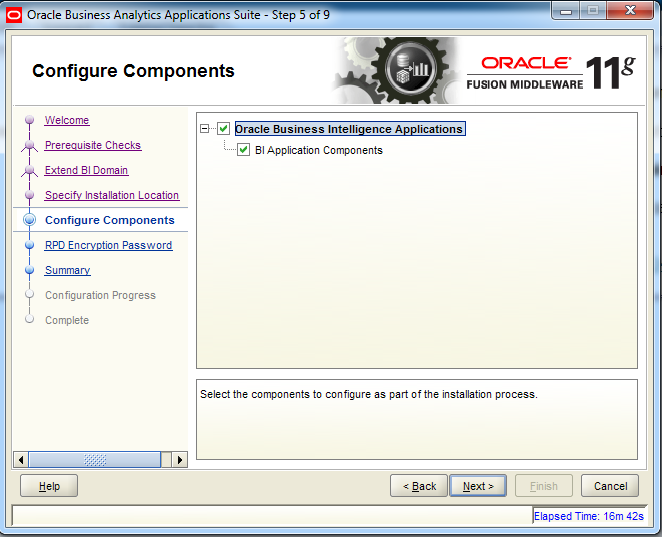

    6.Select BI Application Components Click on NEXT

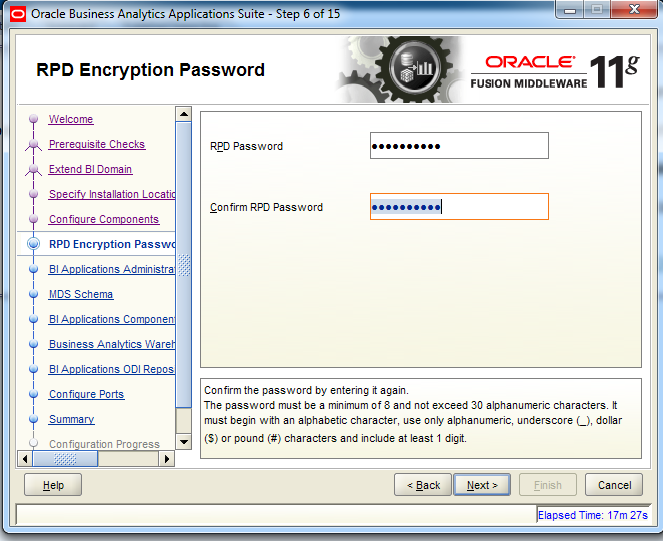

    7.Provide RPD password as Admin123  Click on NEXT
    8.Provides username as biapps password as Admin12$$#
    9. Provide below details ClickonNEXT  C:\Users\SSS2014039\Desktop\obia\Capture8.PNG

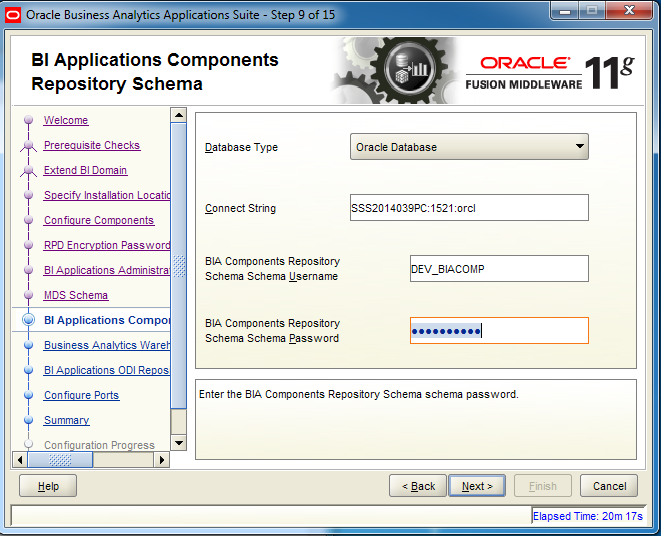

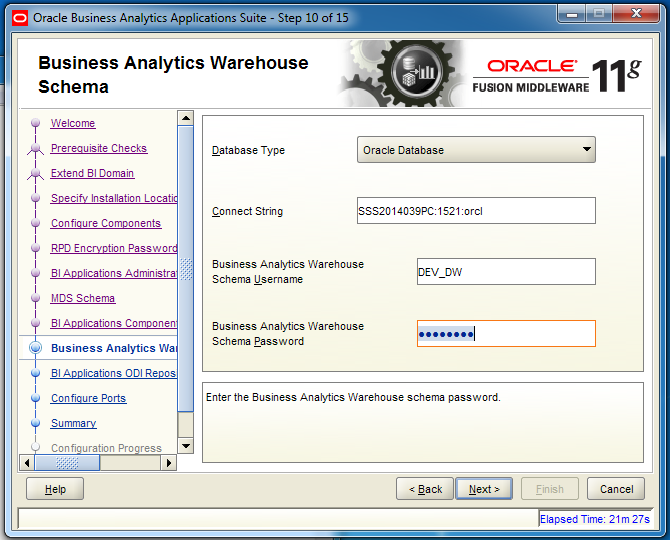

    10.Provide below details Click on NEXT

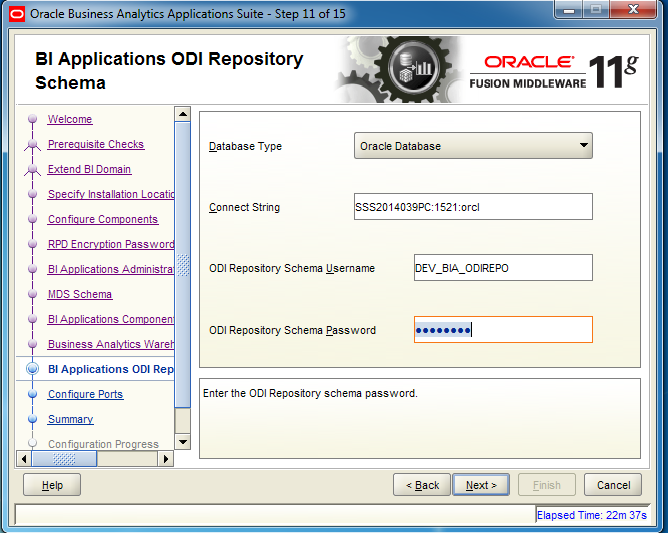

    11.Provide below Details Click on NEXT
    12.Provide below Details Click on NEXT
    13.Select Auto Port Configuration Click on NEXT
    14.Click on Continue
    15.To synchronize the security between ODI Studio and the Weblogic server

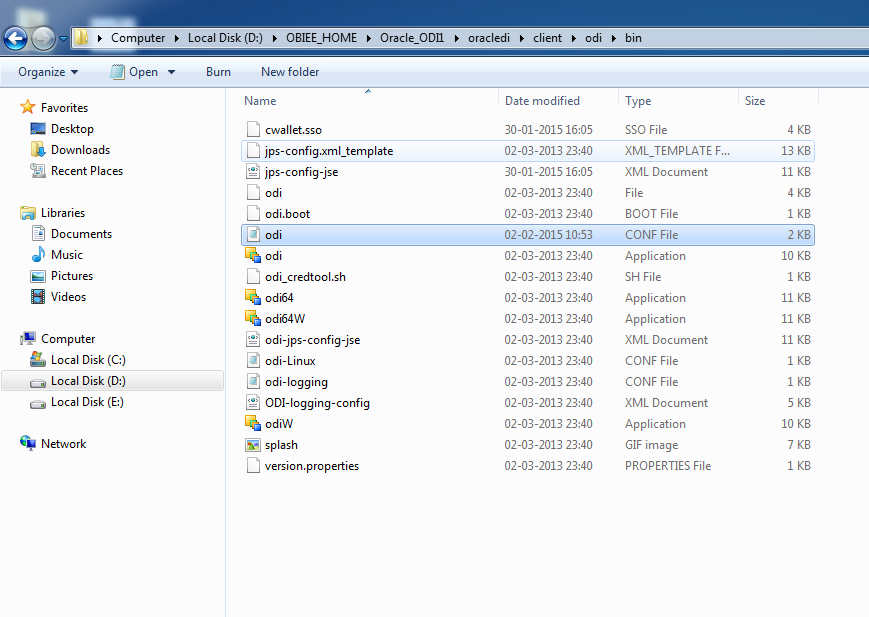

    16.Copy the files cwallet.sso and jps-config-jse.xml from

    D:\OBIEE_HOME\user_projects\domains\bifoundation_domain\odi-client-config\embedded     to  D:\OBIEE_HOME\Oracle_ODI1\oracledi\client\odi\bin

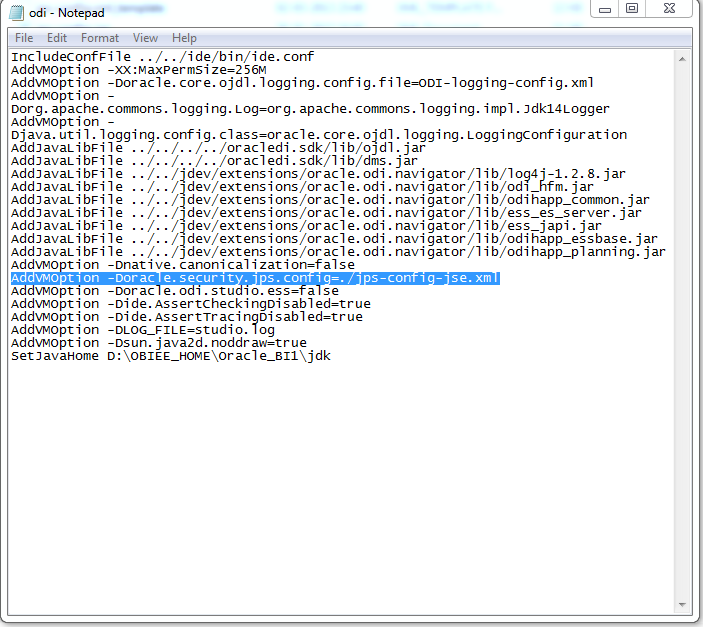

    17.Now edit the file <ODI_Home>/oracledi/client/odi/bin/odi.conf
    18.Locate the line AddVMOption -Doracle.security.jps.config=./jps-config.xml
    19.Modify as shown below

    20.save Close
    Load Plan Generator Plug-in
    21.The load plan generator plug-in for ODI is supplied in a zip file and it is used by BIACM

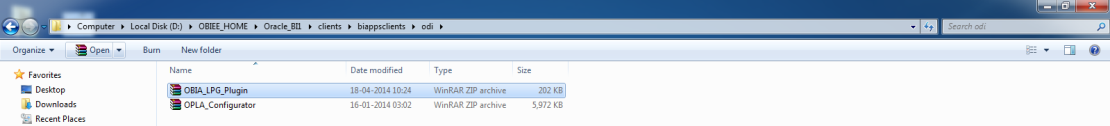

    22.Copy and  paste  the file from the location E:\OBIEE_HOME\Oracle_BI1\clients\biappsclients\odi    to  E:\OBIEE_HOME\Oracle_ODI1\oracledi\client\ide\extensionsC:\Users\SSS2014039\Desktop\obia\Capture18.PNGC:\Users\SSS2014039\Desktop\obia\Capture19.PNG

    23.Unzip the file OBIA_LPG_PLUGIN

    Login to ODI
    24.Make sure weblogic server is running
    25. open ODI studio
    26. click on connect to repository
    27. click on new connection

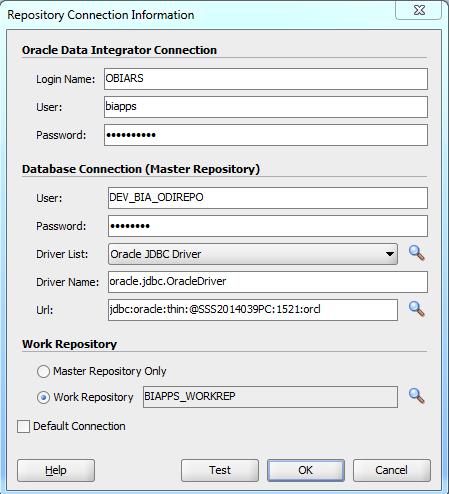

    28. provide below details
    29.Click on OK
    30.Again Ok

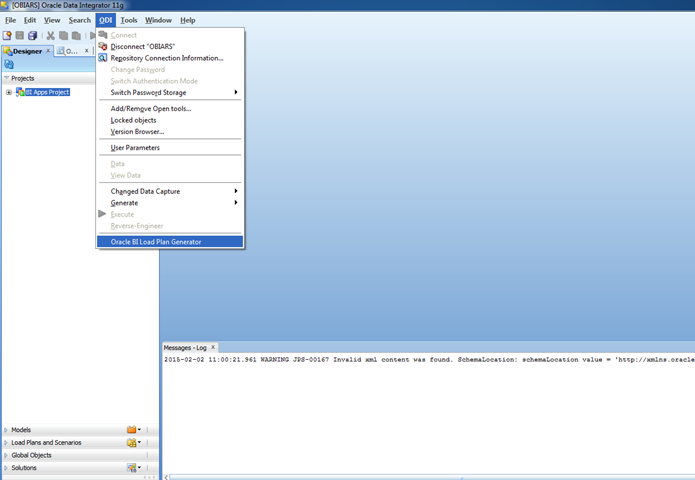

    31.In previous step we extracted load plan generator ZIP file because of that we got below plugin
    32.Now we can see all predefined interfaces of SDE SIL and PLP
