Oracle
Data Integrator Upgrading from 10g to 11g.
The
is to cover the method and issues related to it . I am sure this
will give our viewers best idea and steps on how to move forward to newer
version.
ODI
11g have an UPGRADE ASSISTANT that will help to upgrade the repository from ODI
10g to ODI 11g.
In
case if you trying to upgrade by logging into the Master Repository and upgrade
you will encounter the following error.
There
is a Upgrade Assistant available in /bin
folder . When I clicked it directly nothing happen so I knew , I need to
call it using command prompt.
So
I called the ua.bat being in windows and
after a while an error . oops !! . hmm no idea what it is .?
I
went to that path and saw that since I was using the Generic Version so I dint
see any WIN 32 bit and saw only WIN64 , although I had OraInstaller.dll
. I thought to myself is it a bug or can we upgrade only with 32 bit ODI
version . I am sure that should not be the case , so I started looking at
the certification
(http://www.oracle.com/technetwork/middleware/data-integrator/odi-1111x-cert-matrix-163773.xls#’ODI ) and I found that
for windows its only 32 bit which is supported.
To
move on I changed the win32 to win64 and saved ua.bat I again got the
error , I
thought let me go for win32 ODI installation .
Moved to 32 bit ODI Installation
Launched
the Upgrade Assistant from <ODI_HOME>/bin/ua.bat
I
am presently upgrading only the ODI repositories and not other component.
The
third options – Check that Upgrade Occurs only to Cloned Repositories ,
caught my attention. Still I just clicked Next and moved ahead.

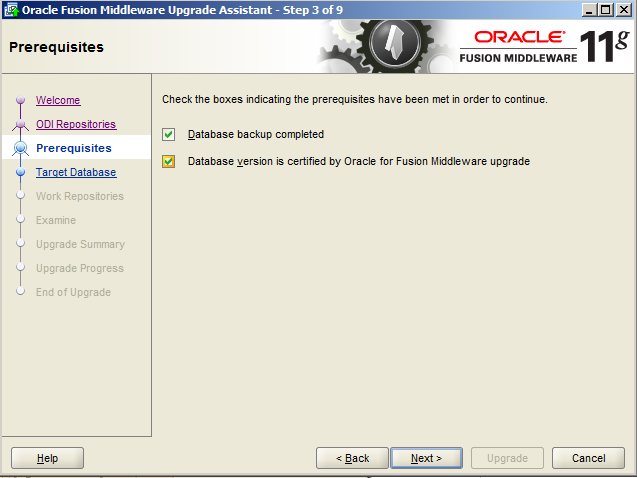

In
this screen I checked Database Backup completed , so I thought to myself ,
looks like I need to do something or I am missing something , so I
searched for the Upgrade from ODI 10g to ODI 11g documentation and I found this
Here
they have mentioned to do the cloning or backup of the Repository of Master and
Work under the Master . Rather than creating the scripts I used a simple
process through SQL Developer –> Database Copy
Before
doing so Create the required ODI 11g Master and Work Repository schema and
assign the required tablespaces to them .Once done using the Database copy ,
copy the Tables and the data.
In
Next step , SQL Developer lists all the steps and finally click Finish to
start the copy Process. Once completed , you will able to find all the Master
Repository tables created in the next Master Repository schema with the
required data in it.
Keep
repeating the Process for all the Work Repository under that above Master
Repository. Once completed Click Next in the Upgrade Assistant to move to Step
4.
Here
in Step 4 list all the details required and provide the Master Repository
just created above and provide the SUPERVISOR username and Password used in ODI
10g Repository.
Once
the above screen is successful , Upgrade Assistant will lists all the Work
Repository under the Master . Now provide the username and password of the
schema of Cloned ODI 11g schema .
[
Note in case , any of the above mentioned steps is wrong or incorrect you will
get an error screen as shows below
Use
the First or the Third option but never the second option as
there might be chances of corruption causing issues or improper Repository
setup ]
Once
Work Repository schema authentication is done , Click Upgrade to start the
Upgradation Process.
Finally
the required tables , and LKM are upgraded and the logs can be visited by click
on the link mentioned in the Upgrade Assistant .
Now
login into the ODI Studio and provide the Master Repository detail and select
the appropriate Work Repository and log in , you don’t need to provide the
internal ID since it will use the Internal Id specified during ODI 10g setup .
As
you can see all the Interface, Model , Topology, agents are all created but you
would need to create the appropriate Standalone Agent script for the migrated
Agent.
I
wanted to test the migration so I executed an Interface and it worked.
I
also had another EWR setup under my Master Repository , I logged inside it too.
I
can see all the required Scenarios, topology and other ODI objects.
These
are some of the simple Upgrade process from ODI 10g DWR and EWR to
ODI 11g .
