SSO Installation : Configure oracle HTTP server in front of Oracle Weblogic Server

..In Our previous page we created Web Tier utilities installation.

1. Configuring Oracle HTTP Server for the Administration Server:

1.To enable Oracle HTTP Server to route to the Administration Server, you must set the corresponding mount points in your HTTP server configuration

2.Modify mod_wl_ohs.conf

go to this path D:\WEB_TIER\Oracle_WT1\instances\instance1\config\OHS\ohs1\mod_wl_ohs.conf

2. Add below line in mod_wl_ohs.conffile

After adding these lines we shoud restart the http server

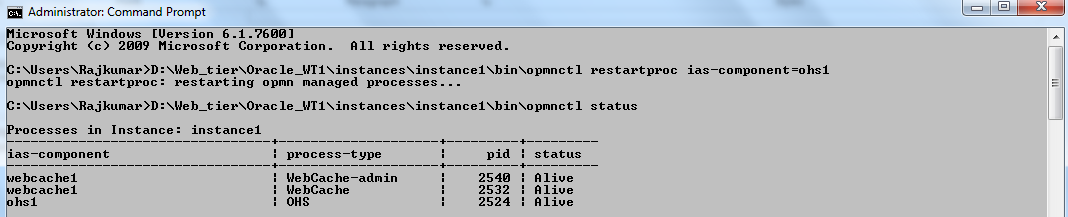

Run this comment in cmdD:\Web_tier\Oracle_WT1\instances\instance1\bin\opmnctl restartprocias-component=ohs1

D:\Web_tier\Oracle_WT1\instances\instance1\bin\opmnctl status

Now Login with http://localhost:7777/em and also console

Here 7777 is Http server port.


Configuring Oracle HTTP Server for the bi_servern Managed Servers

1. To enable Oracle HTTP Server to route to the Administration Server, you must set the  corresponding mount points in your HTTP server configuration

2. Modify mod_wl_ohs.conf

go to this path D:\WEB_TIER\Oracle_WT1\instances\instance1\config\OHS\ohs1\mod_wl_ohs.conf

2. Add below line in mod_wl_ohs.conffile

Run this comment in cmdD:\Web_tier\Oracle_WT1\instances\instance1\bin\opmnctl restartprocias-component=ohs1

D:\Web_tier\Oracle_WT1\instances\instance1\bin\opmnctl status

Now We can able to login analytics page using HTTP server port.

Localhost or sss2014012pc:7777/analytics

.. to be continued Navigate to Installation Procedure for Oracle Access Manager
